Description

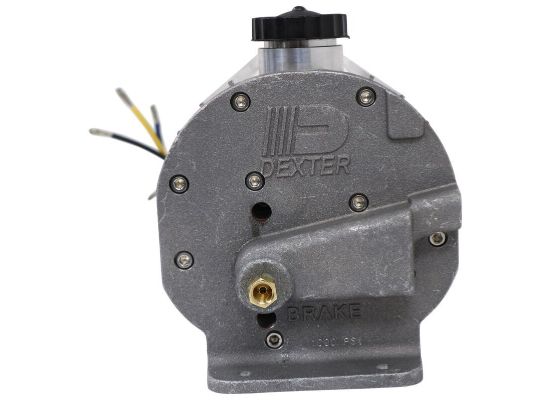

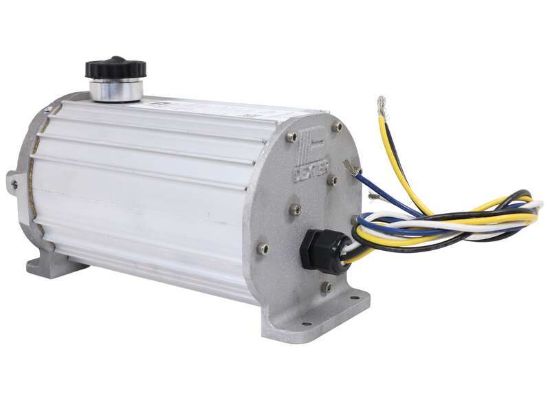

Electric-hydraulic brake actuator works with your brake controller (sold separately) to activate your trailer's drum brakes. Vented housing releases heat and moisture. Enhanced wiring protection safeguards internal electronics.
Features:
Specs:
Features:
- Electric-over-hydraulic brake actuator activates your trailer's hydraulic brakes when you apply the brakes in your vehicle
- Brake controller (sold separately) is required to send signal from tow vehicle to actuator when brakes are applied
- 7-Way trailer connector (sold separately) is needed to transmit signal from brake controller
- Improved functionality when compared with surge brake couplers
- Faster response time - activates when you apply brakes in tow vehicle, as opposed to when trailer pushes against hitch ball
- No need to manually lock out brakes when you back up
- Trailer brakes can be intentionally activated when you reverse
- Manual override on brake controller can be activated so you can engage the trailer brakes without having to apply your vehicle brakes
- Vented design releases pressure, moisture, and heat to protect the internal components
- Allows actuator to be mounted in places where most actuators would overheat
- Electronic, proportional pressure valve ensures smooth, even braking
- Self-priming pump reduces time needed for brake bleeding
- Enhanced wiring detects dangerous current levels and shuts down actuator electronics in the event of a surge
- Durable aluminum housing and stainless steel fasteners resist corrosion
- Goretite seals protect the circuit board from the elements
- Compatible with most 9-amp-hour-battery breakaway kits (sold separately)
- DOT compliant
- Unit installs on trailer frame and connects to trailer's wiring and hydraulic brake lines (sold separately)
- Made in the USA
Specs:
- Application: single-, tandem-, and triple-axle trailers with drum brakes
- Maximum output pressure: 1,000 psi
- Dimensions: 11" long x 6" wide x 7" tall
- Distance between mounting holes (center to center):
- 2-1/2" between holes on same side of bracket
- 9-13/16" between holes on opposite sides of bracket
- Mounting hole diameter: 1/4"

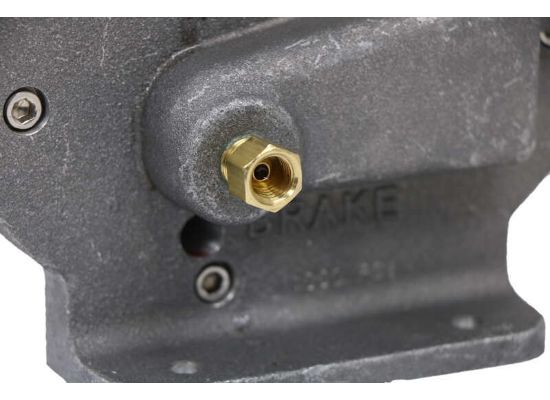

- Hydraulic port size: 3/16"
- Power: 12V DC

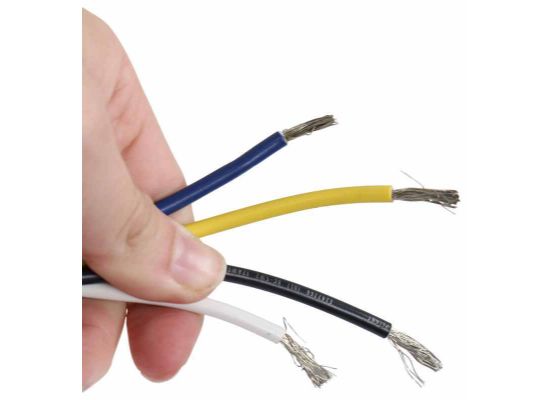

- Wire configuration:
- Black: 12-volt power
- Blue: brake controller
- Yellow: breakaway
- White: ground
- 2-Year limited warranty
Specifications
| Brand: | Dexter |
| Status: | Active |
| Manufacturer Part #: | K71-650-00 |
| Application: | single-, tandem-, and triple-axle trailers with drum brakes |
| Distance between mounting holes (center to center): | 2-1/2" between holes on same side of bracket / 9-13/16" between holes on opposite sides of bracket |
| Mounting Hole Diameter: | 1/4" |
| PSI: | 1000 |
| Power: | 12V DC |
| Dimensions: | 11" (l x 6" (W) x 7" (H) |
